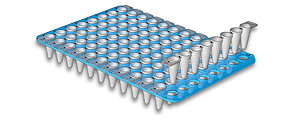

Tube support grid holds plates, strips or individual tubes. The tube support grids are available
in two formats (regular and wide) and in a range of colors, are alphanumerically marked and have knobs to fix EU tubes, strips and plates. Once the tube strips or plates are positioned,
and after pipetting the required reagents, the Tube Support Grid is used as a carrier which can be placed in the thermal cycler, during pre- and post the cycling process.
Support grid:
11.3 cm (L) x 7.6 cm (W) x 0.15 cm (H)
4.48 inch (L) x 2.99 inch (W) x 0.06 inch (H)
Wide Area (use with click on strip-cap, color coding plates, C7... tubes and C7....tube strips)
| Orderno |
Description |
Package size |
| B69351 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), natural | 8 grids |
| B69352 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), red | 8 grids |
| B69353 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), blue | 8 grids |
| B69354 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), green | 8 grids |
| B69355 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), yellow | 8 grids |
| B69359 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), white | 8 grids |
| B69360 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), black | 8 grids |
Regular (use with single tubes, tube-strips and plates except C7... tubes and C7....tube strips)
| Orderno |
Description |
Package size |
| B69301 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), natural | 8 grids |
| B69302 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), red | 8 grids |
| B69303 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), blue | 8 grids |
| B69304 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), green | 8 grids |
| B69305 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), yellow | 8 grids |
| B69309 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), white | 8 grids |
| B69310 | EU Pre-Post Tube support grid, can hold either EU Plates or tube (strips), black | 8 grids |

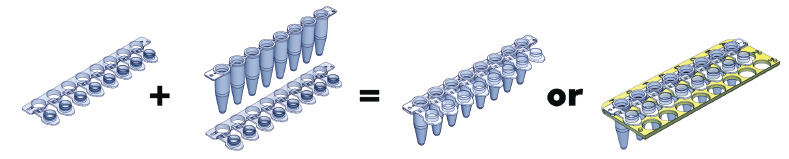

The Click-on Cap(TM) Strip allows individual closure of (q)PCR tube strips. Limiting cross contamination and the possibility of signal enhancement
in Real-Time PCR are two highly valued features that benefit users. It enables the use of white strip tubes combined with clear caps which can be individually closed. The new Click-on 8-cap strip does add an important feature to the existing range. “Clicking” the EU 8-Single Attachable Indented Cap strip to either BIOplastics low profile or regular profile 8 tube-strip enables full flexibility in composing colored 8-tubes-strips with
natural clear single attachable optical caps. In most cases this feature is used as a combination of white 8 tube-strips and optical clear flat caps. Click-on CapsTM can be used in combination with BIOplastics (q)PCR strips type B77001 (Low Profile) and B77101 (Regular Profile).
These combinations will work in all ABI, Bio-Rad and Roche LightCycler ® 480 systems. Some combinations require the use
of an adaptor.
(See www.bioplastics.com or Cycler Adaptor overview.)
Fits almost all cycler models and qPCR cycler models which accept regular profile products.
(e.g. ABI, Bio-Rad, Eppendorf, Agilent-Stratagene) See Cycler to Product charts or the interactive options at www.bioplastics.com. ABI compatible.
| Orderno |
Description |
Package size |
| B72911 | EU 0.2 ml Thin-wall 8-tube strip with single attached optical caps, (Regular Profile), natural | bag, 120 |
| B72911L | EU 0.2 ml Thin-wall 8-tube strip with single attached optical caps, RP, Laser Mark Coded, natural | bag, 120 |
Not available in the USA, alternative for the USA: B79501 + B77101
For closure of (q)PCR 8-tube strips type B77001 (Low Profile), B77101 (Regular Profile)
| Orderno |
Description |
Package size |
| B79501 | EU 8-Single attachable OpticaI Wide indented cap-strip, natural | 10 grids* |
*10 grids hold 120 strips
Fits almost all cycler models and qPCR cycler models which accept Regular profile products.
(ABI, Bio-Rad, Eppendorf, Agilent-Stratagene) See Cycler to Product charts.ABI compatible.
| Orderno |
Description |
Package size |
| B77101 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, natural | bag, 120 |
| B77102 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, red | bag, 120 |
| B77103 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, blue | bag, 120 |
| B77104 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, green | bag, 120 |
| B77105 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, yellow | bag, 120 |
| B77106 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, orange | bag, 120 |
| B77107 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, violet | bag, 120 |
| B77108 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, Amber | bag, 120 |
| B77109 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, white | bag, 120 |
| B77110 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, black | bag, 120 |
| B77111 | EU 0.2ml Thin-wall 8-tube strip, Regular Profile, Light Frosted, natural, sterile | bag, 120 |
| B77109L | EU 0.2ml Thin-wall 8-tube strip, RP, LF, Laser Mark Coded, white | 10 grids* |
*10 grids hold 120 strips

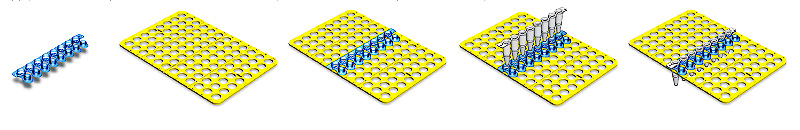

1.Position single attachable cap-strip in Tube Support Grid Wide (B69360, B69351.)br />
(Put grid up-side down if cycler does not accept the grid, e.g. ABI 7500, 7300 Fast & regular, Roche LightCycler ® 480 systems).
2. Slide 8-tube-strip into the cap holes.
3. Apply reaction component to the wells, individually close the tubes and position in the cycler.
For closure of (q)PCR 8-tube strips type B77001or B77101.
| Orderno |
Description |
Package size |
| B79501 | EU 8-Single attachable OpticaI Wide indented cap-strip, natural | 10 grids* |
*10 grids hold 120 strips
Fits almost all cycler models and qPCR (fast) cycler models which accept low profile products. (ABI*(fast), Roche LightCycler ® 480 systems*, Bio-Rad, Eppendorf)
(*requires specific adaptor). See Cycler to Product charts
| Orderno |
Description |
Package size |
| B77001 | EU 0.2ml Thin-wall 8-tube strip, Low Profile, Light Frosted, natural | bag, 120 |
| B77009 | EU 0.2ml Thin-wall 8-tube strip, Low Profile, Light Frosted, white | bag, 120 |
| B77009L | EU 0.2ml Thin-wall 8-tube strip, Low Profile, LF, white, Laser Mark Coded | 10 grids* |
*10 grids hold 120 strips
Hint: Use this strip in white in conjunction with the 8 single attachable Optical wide area cap to get highest signals and low possible
cross contamination in qPCR procedures. Fits ABI fast, StepOne, StepOne Plus, as well as Roche LightCycler ® 480 systems* cyclers.
*requires specific BIOplastics adaptor
1. position single attachable cap-strip in Tube Support Grid Wide (B69360, B69351).
(put grid up-side down if cycler does not accept the grid, e.g. ABI 7500, 7300 Fast & regular, Roche LightCycler ® 480 systems).
2. slide 8-tube-strip into the cap holes.
3. apply reaction component to the wells, individually close the tubes and position in the cycler.
